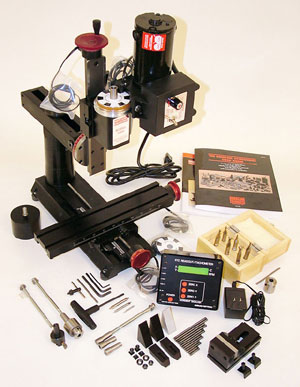

p>8-direction vertical milling machine with with
P/N 8100 3-axis digital readout and A Package
YOU SAVE $56.00 over the price of these items
The 2000 (inch) or 2010 (metric) deluxe 8-direction mill with 14" base can be
ordered with a selection popular accessories. Included are all the items you
need to set up for most milling jobs including cutting tools and holding
Included with the mill are the following accessories:
3072 1/4" Jacobs Drill Chuck
3013 Step Block Hold-down Set
3020 5/32" Sherline Hex T-Driver
3021 3 pc. Center Drill Set
3052 Fly Cutter w/ Carbide bit
3060 3-pc. Mill Collet Set w/ Drawbolt
3079 3/8" End Mill Holder
3551 Milling vise
5327 Sherline Accessories Shop Guide book
7400 6-pc. 3/8" Shank End Mill Set
The 2000-series 8-direction mill was designed to take Sherline tools into the
next century. Patterned after the movements of the industry standard for
full-size mills, the Bridgeport® mill, the column has been redesigned to offer
four additional directions of movement compared to other Sherline mills. A
modified rotary column attachment allows the Z-axis column to tilt from side to
side up to 90°. A laser engraved angle scale makes setting the tilt angle easy.
As on the rotary column, a clamping ring design locks the column securely at the
desired angle. On the back side of this special rotary column attachment is a
knuckle that allows the top of the Z-axis column to be tilted either toward or
away from the operator. Laser engraved scales indicate movement up to 90° in
either direction on this axis.
In addition to the side-to-side rotary tilt
movement, the new column base offers a center pivot lock that allows the ram to
be moved both in and out as well as swung from side to side. In/out travel is
5.50" and side-to-side motion is indicated by laser engraved scales showing up
to 90° of movement either way. These four movements are in addition to the
standard mill’s X-, Y-, Z-axis travel and headstock rotation movement, giving a
total of eight directions of motion or tilt. This much versatility puts the
Sherline model 2000 mill in a class by itself in this size range. It is a fully
functional shop mill that fits on a tabletop and stores on a closet shelf. When
used with accessories like the tilting angle table and rotary table, the
machining possibilities of the mill are limited only by part size and the extent
of your imagination.
The 2000-series mill base has been extended an
additional 2" over the Model 5400/5410, extending the Y-axis travel to 7.0"
(178mm). This was done to accommodate the pivoting mechanisms and to take
advantage of the increased arm movements. Like the deluxe Model 5400/5410 mills,
all handwheels are resettable to zero at any time.
The 8-direction mill includes the same laser
engraved scales on the base and table as the 5400-series deluxe mill package.
Also included is a 1/4" Jacobs drill chuck and key. (The headstock spacer block
is not included on the 2000-series mill, as the ram travel makes it
All Sherline mills feature precision machined
dovetailed slides with adjustable gibs, permanently lubricated spindle bearings,
adjustable preload anti-backlash feed screws and a high-torque 90 VDC motor with
electronic speed control. Speed is continuously variable from 70 to 2800 RPM
without gear or belt changes. A second pulley position is also available to
provide extra torque at low RPM if needed.
OTHER OPTIONS: The 2000/2010 mill can be
ordered with P/N 8100 digital readout already installed. Standard handwheels are
not included because they are replaced by the DRO handwheels. The mill can also
be ordered in "CNC ready" configuration ready for the application of stepper
motors and CNC controls. In this configuration the standard handwheels are
supplied so that they can be used on the rear shaft of a dual shaft stepper
motor for optional manual control.
2000ADRO 2000-DRO Milling Machine + A Package (~55Lb)
