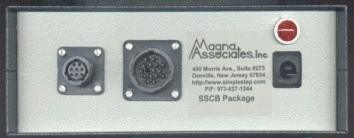

Simple Step Single Axis Controller Board (All the features found on the
SSCB)
DB-9 Communications Connector
Choice of Simple Step™ Network RS232 or RS422/RS485
Up to 16 SSCBPkg's on one Serial Line.
3 foot shielded Motor, Limit, Home and 500ma FET Output cable (Optical
Home sensor already attached and tested).
3 foot (New) User I/O cable (3 Inputs, 1 OC 20ma Output).
International 6 foot Line Cord.
Ergonomic AC Power Switch.
90-264VAC Power Light.
International 90-264VAC, 47-63Hz, Auto Switch, 2.0 amp, 24 volt Switching
Power Supply.
Fused International AC Inlet.
NEMA23, 42 oz. in., 1.8 degree, 1.14 amps per phase, Dual Shafted, bipolar
stepper motor. (OPTIONAL)
Simple Step™ for Windows 95/98/NT.
Case - Front and Back Face Plates are made from 12 gauge aluminum, Top
and Bottom sections are made from 16 gauge steel. Size is 8W x 3H x 8L
inches.
32 Bit Option.
2K Internal EEPROM Option. Click to set up your options
