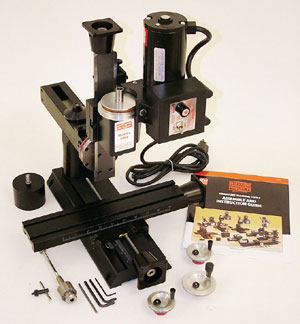

Stepper motor mounts ready for CNC. Includes oil reservoir (Shipping~48Lb)



US$ 1211.00

Any Sherline mill can be ordered with stepper motor mounts factory installed in place of the handwheels and ready for the application of stepper motors and computer numeric controls (CNC). Sherline supplies the mounts, and several aftermarket suppliers offer motors, drivers and software to complete the CNC system.

Sherline recommends using dual shaft stepper motors so that handwheels can be applied to the rear shaft for manual control. With that in mind, handwheels for each axis are included with the machine, although they cannot be used until stepper motors are installed. Sherline also offers high quality stepper motors, which can be found in the accessories section of this site.

The 2000-series 8-direction mill was designed to take Sherline tools into the next century. Patterned after the movements of the industry standard for full-size mills, the Bridgeport® mill, the column has been redesigned to offer four additional directions of movement compared to other Sherline mills. A modified rotary column attachment allows the Z-axis column to tilt from side to side up to 90°. A laser engraved angle scale makes setting the tilt angle easy. As on the rotary column, a clamping ring design locks the column securely at the desired angle. On the back side of this special rotary column attachment is a knuckle that allows the top of the Z-axis column to be tilted either toward or away from the operator. Laser engraved scales indicate movement up to 90° in either direction on this axis.

In addition to the side-to-side rotary tilt movement, the new column base offers a center pivot lock that allows the ram to be moved both in and out as well as swung from side to side. In/out travel is 5.50" and side-to-side motion is indicated by laser engraved scales showing up to 90° of movement either way. These four movements are in addition to the standard mill’s X-, Y-, Z-axis travel and headstock rotation movement, giving a total of eight directions of motion or tilt. This much versatility puts the Sherline model 2000 mill in a class by itself in this size range. It is a fully functional shop mill that fits on a tabletop and stores on a closet shelf. When used with accessories like the tilting angle table and rotary table, the machining possibilities of the mill are limited only by part size and the extent of your imagination.

The 2000-series mill base has been extended an additional 2" over the Model 5400/5410, extending the Y-axis travel to 7.0" (178mm). This was done to accommodate the pivoting mechanisms and to take advantage of the increased arm movements. Like the deluxe Model 5400/5410 mills, all handwheels are resettable to zero at any time.

The 8-direction mill includes the same laser engraved scales on the base and table as the 5400-series deluxe mill package. Also included is a 1/4" Jacobs drill chuck and key. (The headstock spacer block is not included on the 2000-series mill, as the ram travel makes it unnecessary.)

All Sherline mills feature precision machined dovetailed slides with adjustable gibs, permanently lubricated spindle bearings, adjustable preload anti-backlash feed screws and a high-torque 90 VDC motor with electronic speed control. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is also available to provide extra torque at low RPM if needed.

OTHER OPTIONS: The 2000/2010 mill can be ordered with P/N 8100 digital readout already installed. Standard handwheels are not included because they are replaced by the DRO handwheels. The mill can also be ordered in "CNC ready" configuration ready for the application of stepper motors and CNC controls. In this configuration the standard handwheels are supplied so that they can be used on the rear shaft of a dual shaft stepper motor for optional manual control.

Sherline's Mills variety Specifications

FEATURE

5000(5100)

5400(5410)

2000 (2010)

Max clearance, table to spindle

8.00" (203 mm)

8.00" (203 mm)

9.00" (229 mm)

Throat (without headstock spacer) 2.25" (50 mm) 2.25" (50 mm) Adjustable
Throat (with headstock spacer block) (Not included) Included, 3.50" (89 mm)  Not Required
Travel, "X" Axis

9.00" (228 mm)

9.00" (228 mm)

9.00" (229 mm)

Travel, "Y" Axis

3.00" (76 mm)

5.00" (127 mm)

7.00" (178 mm)

Travel, "Z" Axis

6.25" (159 mm)

6.25" (159 mm).

5.38" (137 mm)

Hole through spindle

.405" (10 mm)

.405" (10 mm)

.405 (10 mm)

Spindle nose thread

3/4-16 T.P.I.

3/4-16 T.P.I.

3/4-16 T.P.I.

Spindle taper

#1 Morse

#1 Morse.

#1 Morse

Handwheel graduations

.001" (.01 mm)

.001" (.01 mm)

.001" (.01 mm)

Width overall*

14.75" (375 mm)

15.00" (381 mm)

15.00 (381 mm)

Depth overall*

11.75" (298 mm)

14.00" (356 mm)

22.25" (565 mm)

Height overall*

20.75" (527 mm)

20.75" (527 mm)

23.38" (568 mm)

Table size

2.75" x 13.00" (70 x 330 mm)

2.75" x 13.00" (70 x 330 mm)

2.75" x 13.00" (70 x 330 mm)

Hold down provision

2 "T" Slots

2 "T" Slots

2 "T" Slots

Shipping weight

33 lb. (15.0 kg)

36 lb. (16.3 kg)

38 lb. (17.2 kg)

Movements in addition to X-, Y- and Z-axes

Headstock rotation 90° left/right

Headstock rotation 90° left/right

Headstock rotation 90° left/right, column rotation (90° L/R), column pivot (front/back), column swing (90° L/R) and 5.5" column travel (in/out)

Motor 90 volt DC with electronic speed control automatically converts any input from 100 VAC to 240 VAC, 50 or 60 Hz.
Spindle speed range

70-2800 RPM continuously variable by electronic speed control

(Inch)

(Metric)


2000CNC Stepper motor mounts ready for CNC. Includes oil reservoir (Shipping~48Lb)
