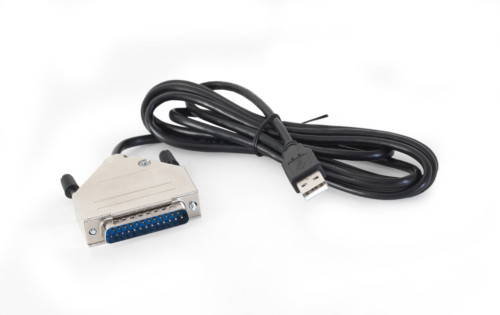

USB for Sherline's CNC Work with your Sherline controller seamlessly from your Windows based Laptop/Desktop USB port. Supports both MACH4 and MACH3 software.

We provide discount on all Sherline's Mills, Lathes and Accessories.

This USB device is designed especially for use with CNC machines with existing LPT (parallel printer) port based control signals input connector. It allows a quick migration from LPT to USB bus. Although small, the device is adjustable and as such requires no complex knowledge on device programming.

It can control up to 4 STEP/DIR signal driven motors (stepper motors, servo drives, etc.) in various applications. The device features 12 digital outputs and 5 digital inputs in total. Four of the digital outputs can be configured to operate as PWM (pulse-width modulated) output.

Features:

Supports MACH3 and MACH4 software,

Compatible with USB 1.1/2.0 HID standard,

standard English USB keyboard simulation (with triggering support for up/down keys),

12 digital outputs (8 are used for step/direction output signals)

5 digital inputs with pull-up resistors

high performance 4-axis 125 kHz pulse engine,

up to 4 high-speed fully configurable PWM outputs (25MHz PWM timer)

fail-safe support in case of communication interruption,

intuitive and user-friendly software,

third-party support via communication DLL library and extensive protocol specification document that allows porting to other systems.

Requirements:

USB connection between host computer and PoKeys57CNCdb25 device

Windows 2000/XP/Vista/Windows 7/8/10 with .NET framework 3.5 installed
