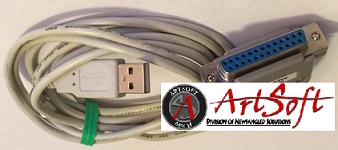

-USB CNC to LPT motion controller. (Click the Cyber Deals logo to view the current promotions).

Use your own Laptop or Desktop along with Sherline's 8760 CNC controller 100% LPT port compatible (For Windows® users only)



US$ 125.00

USB MOTION CONTROLLER FOR WINDOWS.

Comes with installation instructions.
Free
installation phone support if you purchased the Sherline's CNC system from us.

SUPPORTS

Windows XP
Windows 7 32bit and 64bit versions.
Windows 8 32bit and 64bit versions.
Windows 8.1 32bit and 64bit versions.
Windows 10 32bit and 64bit versions.

SPECIFICATIONS:
- Automatic firmware checking and firmware update.
- Motion control of up to 6-axis (X, Y, Z, A, B, C). (Limited by you CNC controller)
- Configurable maximum stepping frequency, 25kHz(20us pulse length) 50kHz(10us pulse length) 100kHz(5us pulse length).
- On the fly configurable 12 pieces of 5Volt (TTL level) buffered outputs. The current sink/source 20mA max. per output.
- On the fly configurable 5 pieces of 5V (TTL) schmitt triggered filtered inputs with input internal pullup  of  4.7kOhms.
- About 1 second long communication buffer.
- 100% LPT port compatible pinout.

Comes with a DB25 gender changer, so it connects to Male or Female DB25 connectors.

FEATURES

- Reference inputs.
- E-stop input.
- Softlimits.
- Limit switch inputs.
- Limits override.
- Index input (extended function supports multi slot sensors).
- Spindle speed PWM control output.
- Step and direction spindle control output.
- Spindle and coolant relay control.
- Charge pump safety signal output (configurable to active/inactive when in E-stop).
- Charge pump adjustable frequency (12.50kHz in normal or 5kHz in laser mode).
- All signals configurable to active High/Low.
- General purpose I/O signals handling.
- Offline mode.
- MPG1 and MPG2 support.
- Slave axis.
- Backlash compensation.
- Digit/probe inpu
t.
- THC control inputs.

Both item (Top and buttom) are a

Great match to the USB-LPT-CNC!

Purchase one hour MACH3 support (Not includes the MACH3 license)

Product Manual
Automatic Installer


USB CNC to LPT motion controller. Use your own Laptop or Desktop along with Sherline's 8760 CNC controller 100% LPT port compatible (For Windows® users only)
